Reducer

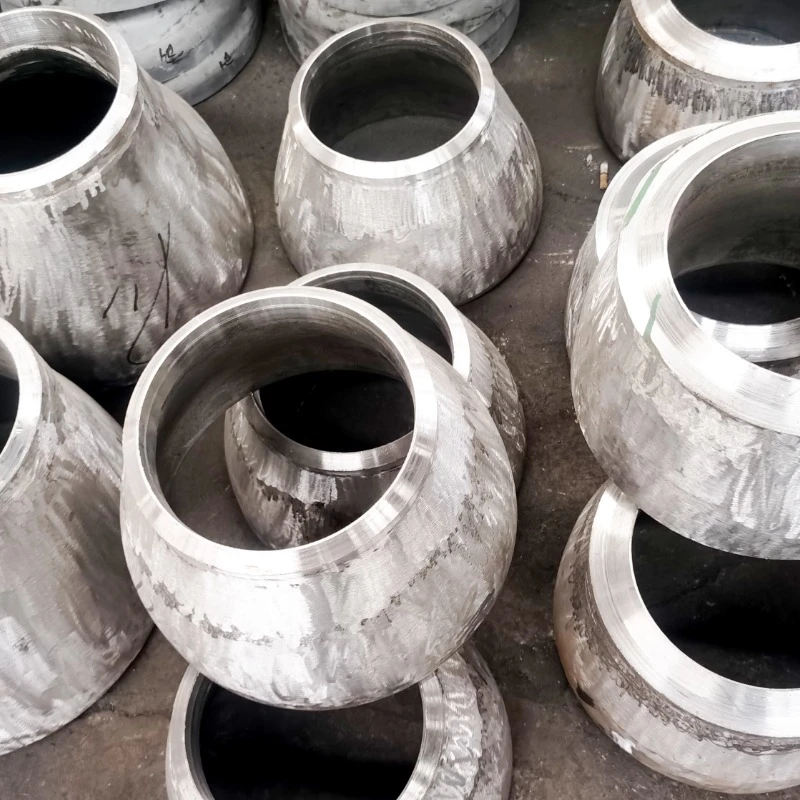

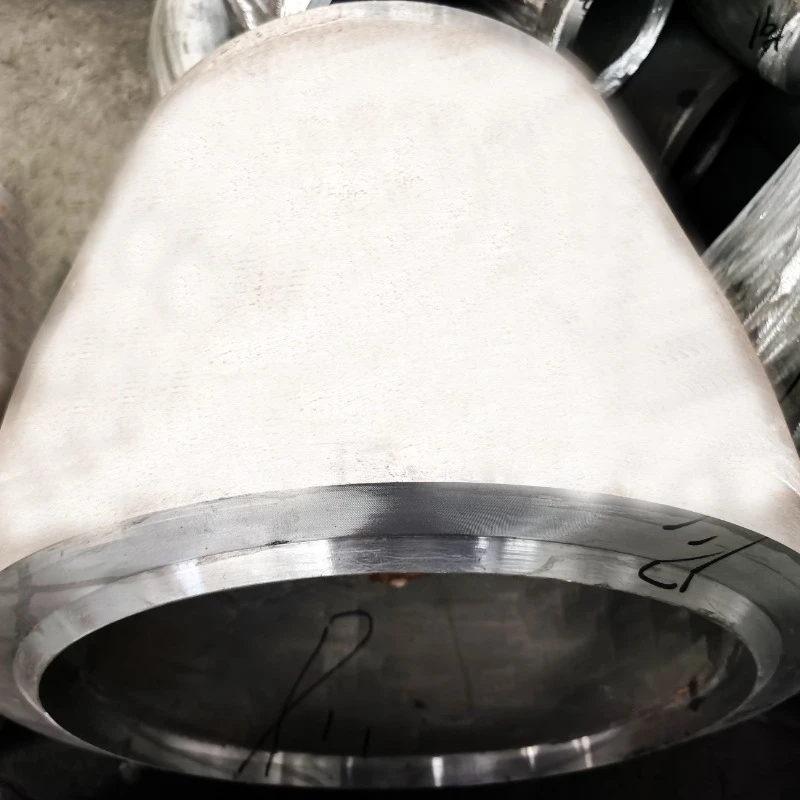

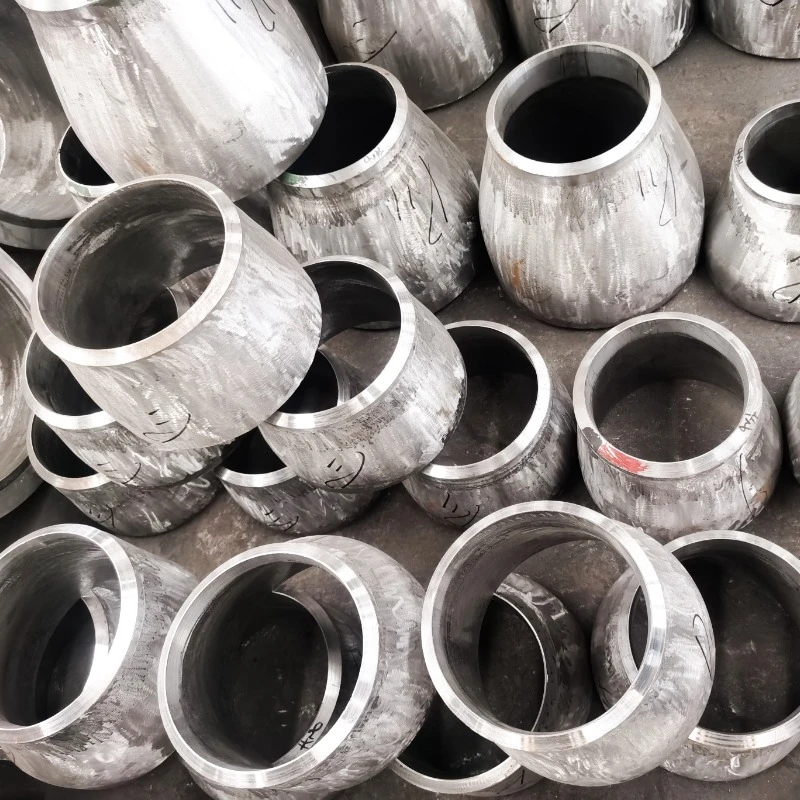

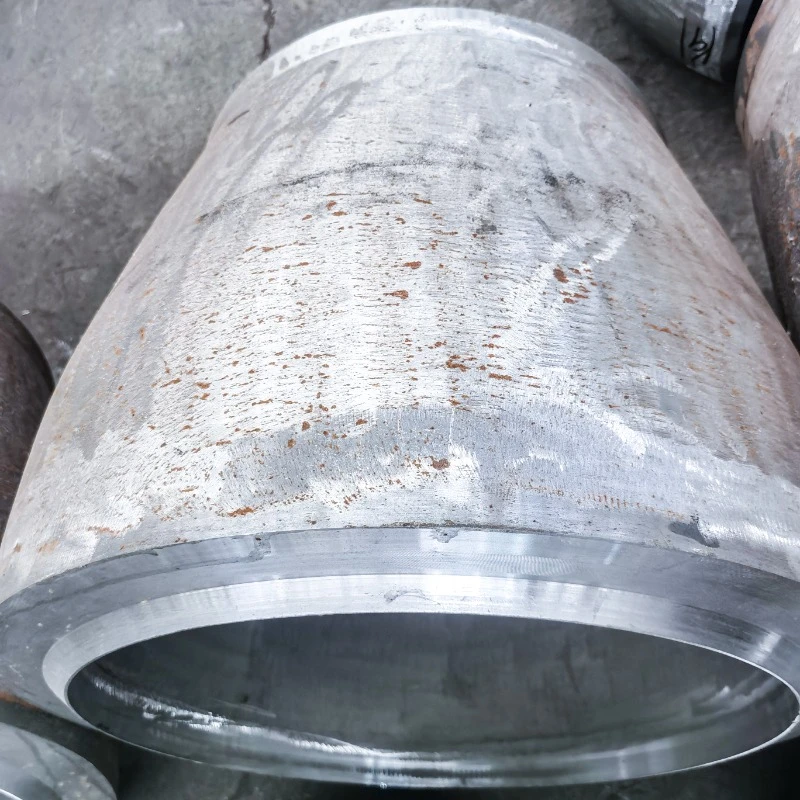

ASTM A234 WP11 Alloy Steel Reducer is a chromium-molybdenum alloy steel butt weld fitting manufactured to ASTM A234 / ASME SA234, with butt-welding ends and dimensional requirements based on ASME B16.9 where applicable.
Product Overview
ASTM A234 WP11 Alloy Steel Reducer is a chromium-molybdenum alloy steel butt weld fitting manufactured to ASTM A234 / ASME SA234, with butt-welding ends and dimensional requirements based on ASME B16.9 where applicable. Hongcheng manufactures and supplies WP11 alloy steel reducers in concentric and eccentric configurations for refinery process piping, power generation, petrochemical plants and other industrial piping applications.
ASTM A234 WP11 is the wrought alloy steel fitting grade associated with the P11 alloy system. ASTM A335 P11 applies to seamless ferritic alloy-steel pipe, while ASTM A234 WP11 applies to wrought butt-welding fittings. These grades are commonly specified together in high-temperature piping systems, while each product form is controlled by its respective ASTM / ASME material specification.
Hongcheng supplies WP11 reducers in applicable heat-treated conditions with material identification, inspection documentation and project-specific technical support. Custom sizes, wall thickness transitions and end preparations are available according to project requirements.
Concentric & Eccentric Configurations
A234 WP11 alloy steel reducers are available in two main configurations:
• Concentric Reducer: The centerlines of the large and small ends are aligned, providing a symmetrical transition between different pipe sizes.
• Eccentric Reducer: The centerlines are offset, allowing one side of the reducer to remain flush. This configuration is commonly used where drainage, pump suction or piping layout requirements need to be considered.
The selection of concentric or eccentric configuration depends on piping arrangement, flow conditions and project specifications.
Material & Heat Treatment
ASTM A234 WP11 is a chromium-molybdenum alloy steel grade containing Chromium (Cr), Molybdenum (Mo), Manganese (Mn), Silicon (Si) and Carbon (C) within the limits specified by the applicable material standard.
Chromium and molybdenum contribute to the material's mechanical properties and suitability for elevated-temperature service conditions.
Heat treatment is performed according to the applicable ASTM A234 / ASME SA234 requirements, qualified manufacturing procedures and purchaser specifications. Typical processing may include normalizing and tempering. Actual heat-treatment conditions depend on the applicable material specification, product size, manufacturing route and project requirements.
Manufacturing Process
Raw Material Inspection → Cutting → Forming → Sizing & Calibration → Heat Treatment → End Beveling → Inspection & Testing → Marking → Packing
Hot forming or other qualified forming processes may be used according to product size, configuration and manufacturing requirements. For welded constructions, welding and applicable PWHT are performed according to qualified welding procedures and project requirements.
Hongcheng controls forming, heat treatment, dimensional accuracy and inspection throughout the manufacturing process to meet applicable standards and purchaser specifications.
Technical Parameters
|
Parameter |
Specification |
|
Product |
A234 WP11 Alloy Steel Reducer |
|
Material Standard |
ASTM A234 / ASME SA234 |
|
Product Type |
Concentric / Eccentric Reducer |
|
End Preparation |
Butt-Welding Ends, ASME B16.25 |
|
Dimensional Standard |
ASME B16.9 where applicable |
|
Size Range |
NPS 1/2–48 (DN15–DN1200), subject to manufacturing capability |
|
Wall Thickness |
SCH 40, SCH 80, SCH 160, XXS and Custom |
|
Construction |
Seamless or Welded, according to size and project requirements |
|
Heat Treatment |
According to applicable ASTM A234 / ASME SA234 requirements |
|
Surface |
Black Painted / Anti-Rust Oil / Natural Finish |
|
Customization |
Custom Size, Wall Thickness, End Preparation and Marking Available |
Inspection & Testing
Inspection and testing are performed according to ASTM A234 / ASME SA234, applicable dimensional standards and purchaser requirements.
Available inspection and testing services may include:
EN 10204 Type 3.1 Material Test Certificates (MTC) can be provided according to purchase requirements. Third-party inspection, additional NDT and project-specific documentation are available upon request.
Applications
A234 WP11 alloy steel reducers are commonly used in:
• Refinery Process Piping
• Petrochemical Plants
• Power Generation Piping Systems
• High-Temperature Industrial Piping
• Boiler and Steam Piping Systems
• Hydrogen-related process piping, subject to material compatibility, design conditions and project requirements
• Pump Suction and Drain Lines Where Eccentric Configuration Is Required
Download
Projects of Reducer
Power Plant Projects
Products: P91 Pipes · P92 Pipes · Pipe Fittings · Pipe Spools
FAQs
What is the difference between P11 and WP11?
P11 and WP11 refer to related grades within the same chromium-molybdenum alloy system, but they are specified under different ASTM product standards. ASTM A335 P11 is used for seamless alloy steel pipe, while ASTM A234 WP11 is used for wrought butt-welding fittings. They are commonly used together in high-temperature piping systems.
What is the difference between concentric and eccentric reducers?
A concentric reducer has aligned centerlines and provides a symmetrical transition. An eccentric reducer has offset centerlines and is used where drainage, pump suction or piping layout must be considered. The selection depends on project specifications.
What post-weld heat treatment is required for WP11 reducers?
PWHT may be required depending on the applicable construction code, wall thickness, welding procedure and project requirements. Where welding is required, WP11 reducers should be welded using qualified procedures with preheating and PWHT applied as required by the applicable code and project specifications.
Can custom sizes and wall thickness transitions be supplied?
Yes. Hongcheng can manufacture custom WP11 alloy steel reducers according to customer drawings and technical specifications.
What standards are supported?
A234 WP11 reducers can be supplied according to ASTM A234 / ASME SA234, with dimensional requirements based on ASME B16.9 and butt-welding end preparation according to ASME B16.25, where applicable.
