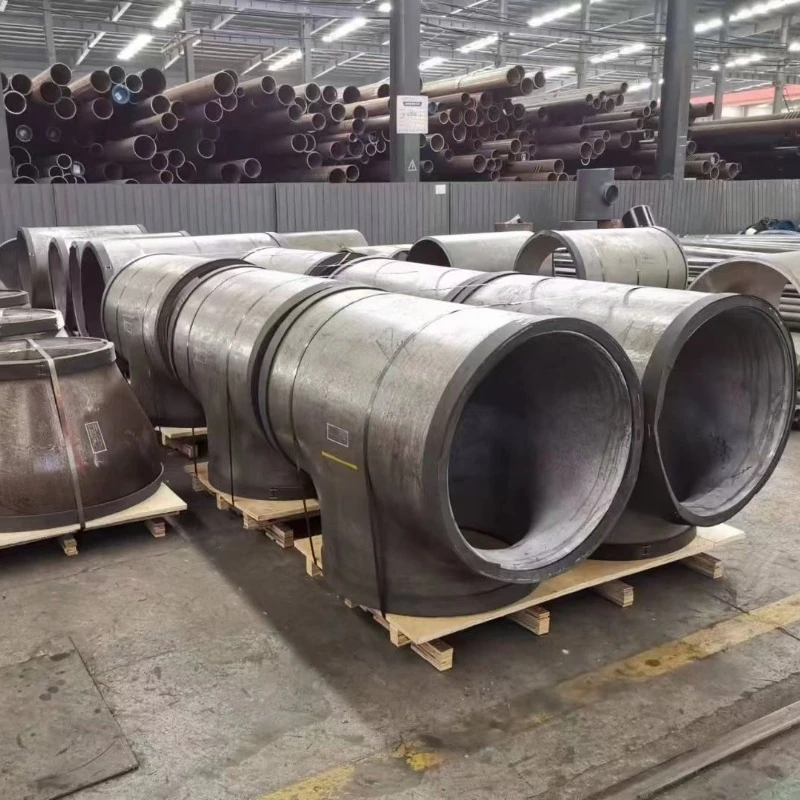

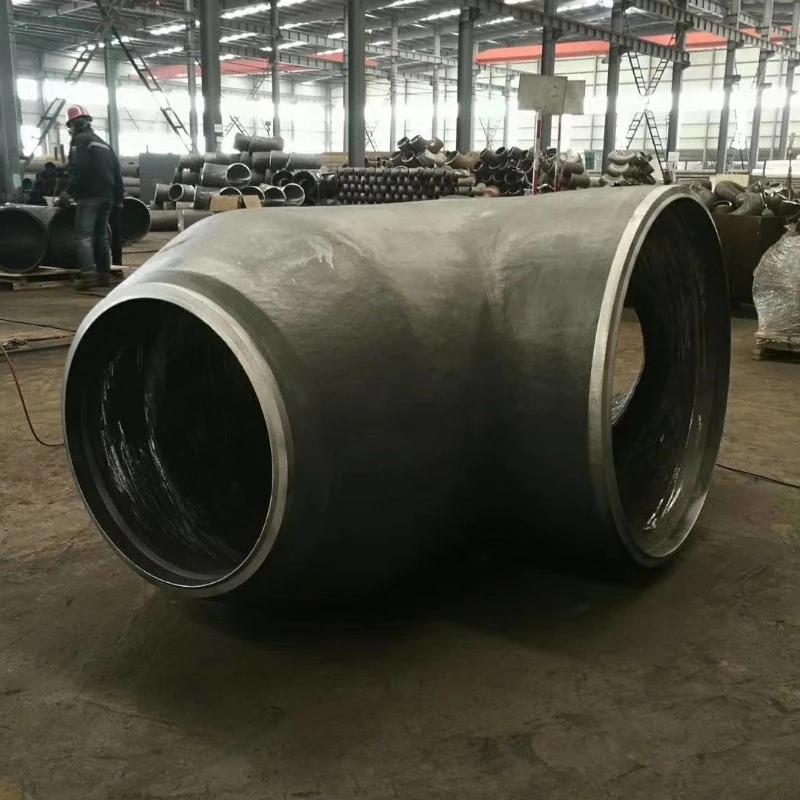

ASTM A234 WP5 Bulbous Tee

ASTM A234 WP5 Bulbous Tee is a 5Cr-0.5Mo chromium-molybdenum alloy steel butt weld fitting manufactured to ASTM A234 / ASME SA234, with butt-welding ends and applicable dimensional requirements based on ASME B16.9 and project specifications. Hongcheng manufactures and supplies WP5 Bulbous Tees in equal and reducing configurations for refinery heater outlets, hydrogenation units, reformer systems and other high-sulfur, high-temperature process piping. Custom sizes, wall thicknesses and branch configurations are available according to project requirements.

Based on a 5Cr-0.5Mo alloy system, WP5 Bulbous Tees provide good resistance to high-temperature sulfidation and oxidation and are widely selected for demanding refinery and petrochemical applications. The enlarged central body (bulbous section) provides additional wall thickness and stress distribution, improving resistance to thermal fatigue and cyclic loading. Material suitability for hydrogen-containing service depends on operating conditions and project requirements. Hongcheng supplies ASTM A234 WP5 Bulbous Tees in normalized and tempered condition, with full material traceability, inspection documentation and project-specific technical support.

ASTM A234 WP5 belongs to the same 5Cr-0.5Mo alloy system used for ASTM A335 P5 seamless pipe and ASTM A182 F5 forgings. These grades are commonly used together in hydrogenation, reforming and high-sulfur process piping systems, while each product form is governed by its respective ASTM / ASME material specification.

Key alloying elements include: Chromium (Cr), Molybdenum (Mo), Manganese (Mn), Silicon (Si), Carbon (C).

Chromium provides oxidation and sulfidation resistance, while molybdenum enhances high-temperature strength and hydrogen attack resistance.

Typical heat treatment includes:

• Normalizing: according to the applicable material specification and qualified heat-treatment procedure

• Tempering: 675°C minimum for normalized and tempered condition

Actual heat treatment parameters are controlled according to the applicable edition of ASTM A234 / ASME SA234, qualified manufacturing procedures and purchaser requirements. Heat treatment parameters are controlled according to ASTM A234, ASME SA234, manufacturing procedures and customer project specifications.

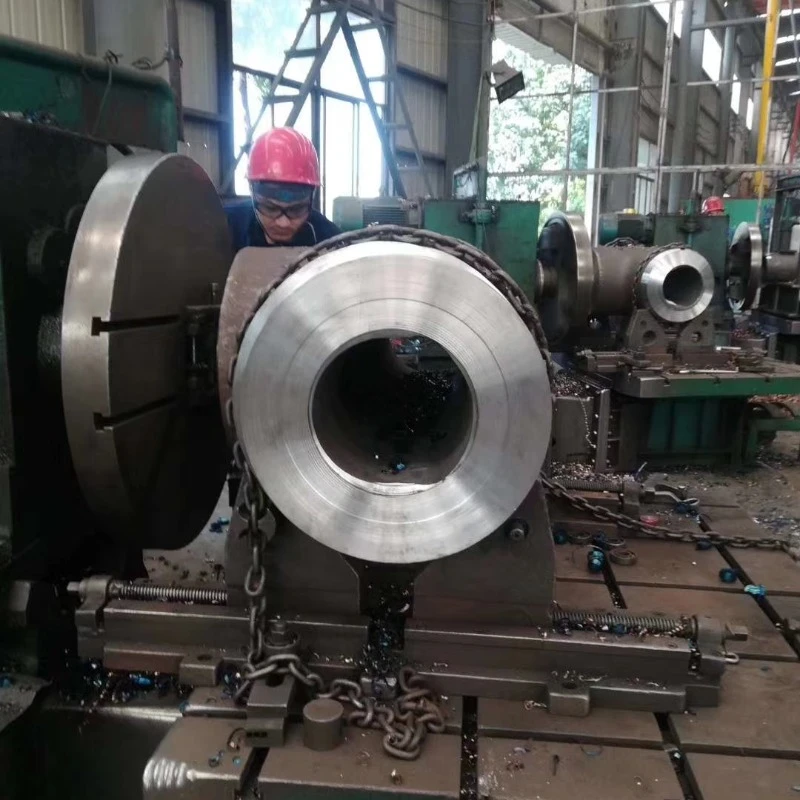

Steel Billet / Forging Stock → Heating → Hot Forming (Bulbous Section) → Sizing & Calibration → Normalizing & Tempering → UT & MT Inspection → Beveling → Marking → Packing

Hongcheng applies strict manufacturing controls throughout forming, heat treatment and inspection processes to ensure dimensional accuracy, material integrity and consistent performance of every WP5 Bulbous Tee, with special attention to the bulbous section geometry and wall thickness transition.

Every ASTM A234 WP5 Bulbous Tee is inspected throughout production to ensure compliance with ASTM A234, ASME SA234, dimensional requirements and customer specifications.

Available inspections and testing include:​

Positive Material Identification (PMI)

Chemical Composition Analysis

Ultrasonic Testing (UT)

Mechanical Property Testing

Hydrostatic Testing

Hardness Testing

EN 10204 Type 3.1 Material Test Certificates (MTC) are available for each production batch. Third-party inspection, additional non-destructive testing and project-specific documentation can be provided according to customer requirements.

ASTM A234 WP5 Bulbous Tees are widely used in:

• Hydrogenation units and hydrocrackers

• Catalytic reformer systems

• Refinery heater outlets and transfer lines

• High-temperature sulfur-containing process piping

• Hydrogen-related high-temperature process systems, subject to material compatibility and project requirements

• Petrochemical high-temperature reactors

• Coal-to-chemical plants

WP5 Bulbous Tees are selected for applications requiring resistance to high-temperature sulfidation and oxidation under elevated-pressure hydrogen service, where thermal fatigue and stress concentration at tee junctions must be managed.
