Hot Pressed Alloy Steel Tee

Hot Pressed Alloy Steel Tee is a seamless butt weld fitting manufactured to ASTM A234 / ASME SA234, with butt-welding ends and applicable dimensional requirements based on ASME B16.9 and project specifications. Hongcheng manufactures and supplies hot pressed alloy steel tees in equal and reducing configurations for power generation, refinery process piping, petrochemical plants and other demanding high-temperature applications. Custom sizes, wall thicknesses and branch configurations are available according to project requirements.

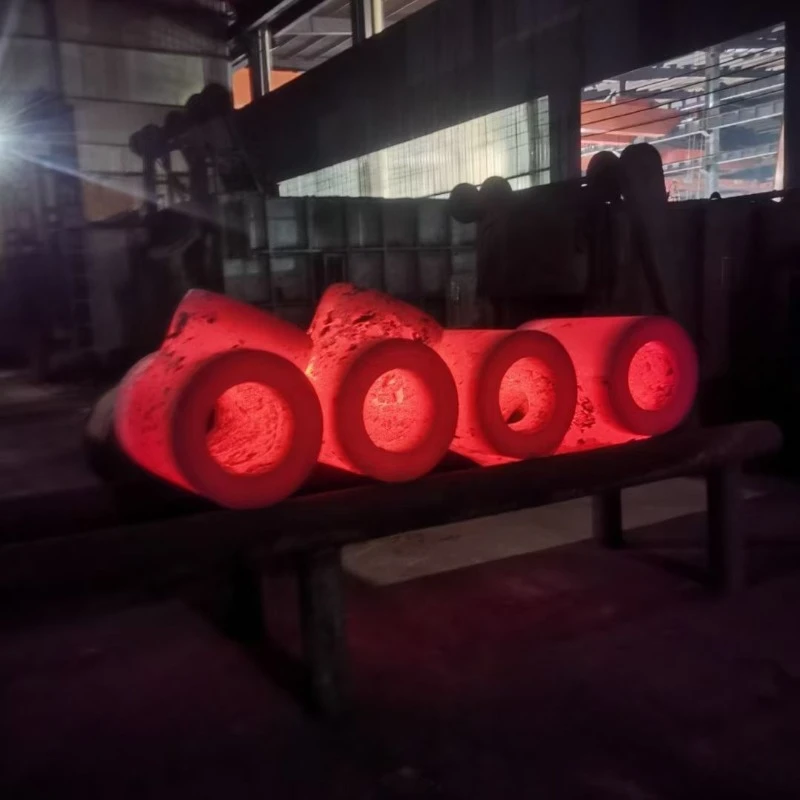

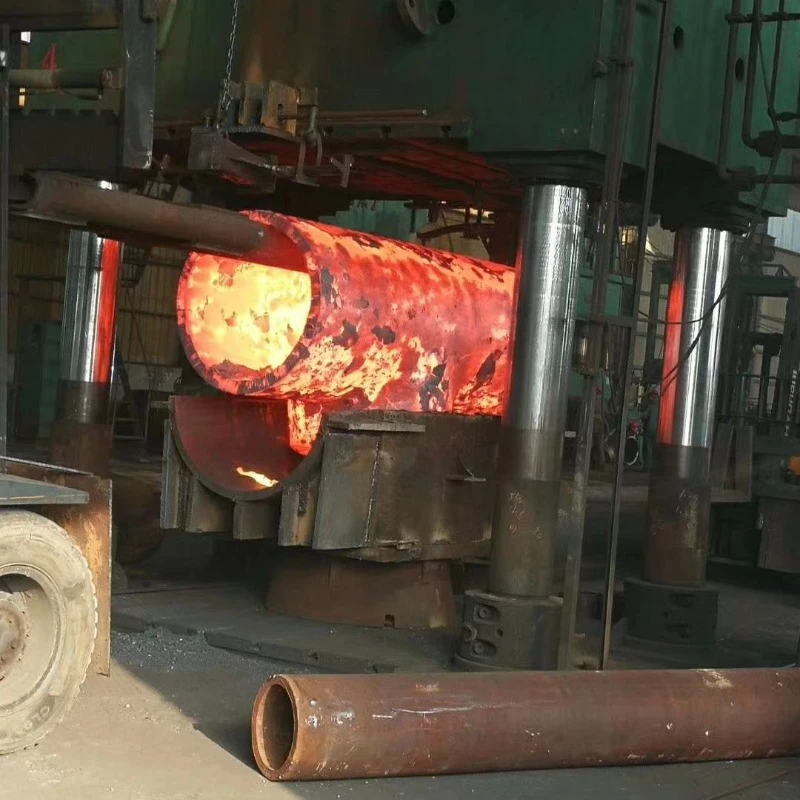

The hot pressing process forms the tee body from a single piece of seamless pipe or suitable forging stock, eliminating a welded seam at the branch junction. This provides controlled branch geometry, smooth wall-thickness transition and reliable structural integrity for high-pressure and high-temperature service. Hongcheng supplies hot pressed alloy steel tees in normalized and tempered condition, with full material traceability, inspection documentation and project-specific technical support.

Hot pressed alloy steel tees are manufactured from chromium-molybdenum alloy steel grades including ASTM A234 WP5, WP11, WP22, WP91 and WP92, selected according to project operating conditions and design requirements. These grades belong to the same alloy systems used for ASTM A335 seamless pipes and ASTM A182 forgings of corresponding grades, with each product form governed by its respective ASTM / ASME material specification.

Key alloying elements vary by grade and may include: Chromium (Cr), Molybdenum (Mo), Vanadium (V), Tungsten (W), Manganese (Mn), Silicon (Si), Carbon (C)，Niobium (Nb).

Chromium provides oxidation and sulfidation resistance, while molybdenum enhances high-temperature strength and hydrogen attack resistance. Vanadium, tungsten and niobium further improve creep strength and microstructural stability in advanced grades.

Typical heat treatment includes:

• Normalizing: according to the applicable material specification and qualified heat-treatment procedure

• Tempering: minimum temperature according to the applicable grade specification for normalized and tempered condition

Actual heat treatment parameters are controlled according to the applicable edition of ASTM A234 / ASME SA234, qualified manufacturing procedures and purchaser requirements.

Seamless Pipe / Forging Stock → Heating → Hot Pressing (Branch Forming) → Sizing & Calibration → Normalizing & Tempering → UT & MT Inspection → Beveling → Marking → Packing

Hongcheng applies strict manufacturing controls throughout hot pressing, heat treatment and inspection processes to ensure dimensional accuracy, material integrity and consistent performance of every hot pressed alloy steel tee, with special attention to branch wall thickness, reinforcement and seamless transition geometry.

Every hot pressed alloy steel tee is inspected throughout production to ensure compliance with ASTM A234, ASME SA234, dimensional requirements and customer specifications.

Available inspections and testing include:​

Positive Material Identification (PMI)

Chemical Composition Analysis

Ultrasonic Testing (UT)

Mechanical Property Testing

Hydrostatic Testing

Hardness Testing

EN 10204 Type 3.1 Material Test Certificates (MTC) are available for each production batch. Third-party inspection, additional non-destructive testing and project-specific documentation can be provided according to customer requirements.

Hot pressed alloy steel tees are widely used in:

• Ultra-supercritical (USC) and subcritical power plant main steam systems

• Hot reheat piping systems

• Refinery high-temperature process piping

• Hydrogenation units and hydrocrackers

• Hydrogen-related high-temperature process systems, subject to material compatibility and project requirements

• Petrochemical high-temperature reactors

• Boiler outlet headers and manifolds

• High-pressure, high-temperature industrial piping
